Starlink Gen 3 Power Guide: AC vs DC, 12V RV Power & Battery Setup
If you're using Starlink Gen 3 at home, in an RV, on a boat, or at an off-grid location, the power system deserves more attention than simply plugging the router into a wall outlet.
Gen 3 is designed primarily as a mains-powered Starlink system, but many mobile users want to integrate it with:
-
12V RV batteries
-
24V vehicle systems
-
Portable power stations
-
Solar systems
-
Backup batteries
-
Off-grid electrical systems
That raises several practical questions:
How much power does Starlink Gen 3 use?
Can you run Gen 3 from a 12V battery?
Do you need an inverter?
What voltage does the Starlink hardware actually require?
Is a DC power setup more efficient for an RV?
This guide explains the Gen 3 power architecture, the difference between AC and DC power, battery runtime calculations, and what to consider when building a mobile or off-grid Starlink system.
Starlink Gen 3 Power System at a Glance
The standard Gen 3 configuration is based around AC power.
A typical setup looks like:
AC Outlet
↓
Starlink Power Supply
↓
Starlink Gen 3 Dish
↓
Starlink Router
For a normal home installation, this is straightforward.
But an RV or off-grid system usually starts with DC power:
Battery
↓
12V / 24V DC
↓
Inverter
↓
AC
↓
Starlink Power Supply
↓
Starlink Gen 3
This works, but it introduces an additional conversion stage.
For users who spend a lot of time away from the grid, a properly designed DC power solution can be worth considering.
How Much Power Does Starlink Gen 3 Use?
Power consumption varies depending on operating conditions, network activity, temperature, and other factors.
Starlink's published specifications should be used as the reference for the specific hardware generation and region you are operating.
For battery planning, it is better to think in terms of watt-hours per day rather than simply looking at the power supply's maximum rating.
The basic calculation is:
Power × Operating Time = Energy Consumption
For example, if a system averages 60W:
60W × 8 hours = 480Wh
If it runs for 12 hours:
60W × 12 hours = 720Wh
If it operates continuously:
60W × 24 hours = 1,440Wh
These numbers are examples for system planning, not a guarantee of actual Gen 3 consumption.
Your actual power requirement should be measured or calculated using the specifications for your particular Starlink equipment.
Power Consumption vs Power Supply Rating
This distinction is important.
The wattage printed on a power adapter does not necessarily mean that Starlink continuously consumes that amount.
For example:
Power Supply Rating
describes what the power supply is capable of delivering.
Actual Power Consumption
describes what the Starlink system is actually using at a given moment.
The two numbers should not be treated as identical.
When sizing:
-
Batteries
-
Solar panels
-
Inverters
-
DC converters
you should use the actual or specified system consumption plus an appropriate engineering margin rather than simply assuming that the adapter's maximum output is continuously consumed.
AC Power: The Simplest Gen 3 Setup
For a home or office installation, AC power is usually the simplest approach.
The architecture is:
Wall Outlet
↓
Starlink Power Supply
↓
Starlink Gen 3
This has several advantages:
-
Simple installation
-
Easy troubleshooting
-
No battery calculations
-
No additional DC conversion
-
Suitable for permanent locations
If your Starlink is installed at home and grid power is available, there is usually little reason to complicate the system.
The situation changes when your Starlink is part of a mobile or off-grid setup.
Running Starlink Gen 3 in an RV
RV electrical systems are usually based around DC batteries.
A typical RV may have:
-
12V house battery
-
Solar panels
-
Charge controller
-
Inverter
-
12V appliances
-
USB charging
-
Refrigerator
-
Lighting
If you connect Starlink Gen 3 through an inverter, the architecture becomes:
RV Battery
↓
Inverter
↓
AC Power
↓
Starlink Power Supply
↓
Gen 3
This is easy to understand and can work well.
However, every conversion stage introduces efficiency losses.
Why DC Power Can Matter in an RV
Suppose your battery stores energy as DC.
Using an inverter converts:
DC → AC
The Starlink power supply then converts the AC electricity into the DC voltage required by the Starlink system.
So the complete process becomes:
Battery DC
→
AC
→
Starlink DC
Each conversion has an efficiency that is less than 100%.
The exact loss depends on the equipment.
For a system that runs occasionally, this may not matter much.
For a Starlink system running many hours every day, especially in an off-grid environment, minimizing unnecessary conversion can make the overall electrical architecture more efficient.
Can Starlink Gen 3 Run Directly From 12V?
This is where users need to be careful.
You should not assume that a 12V battery can simply be connected directly to the Gen 3 hardware.
The required voltage and connector configuration of the Gen 3 power system must be matched correctly.
A 12V battery and a Starlink device are not automatically electrically compatible just because both use DC internally.
Before connecting a third-party DC solution, verify:
-
Input voltage
-
Output voltage
-
Maximum current
-
Connector type
-
Polarity
-
Cable gauge
-
Protection features
-
Starlink hardware compatibility
This is especially important because an incorrect voltage can damage electronics.

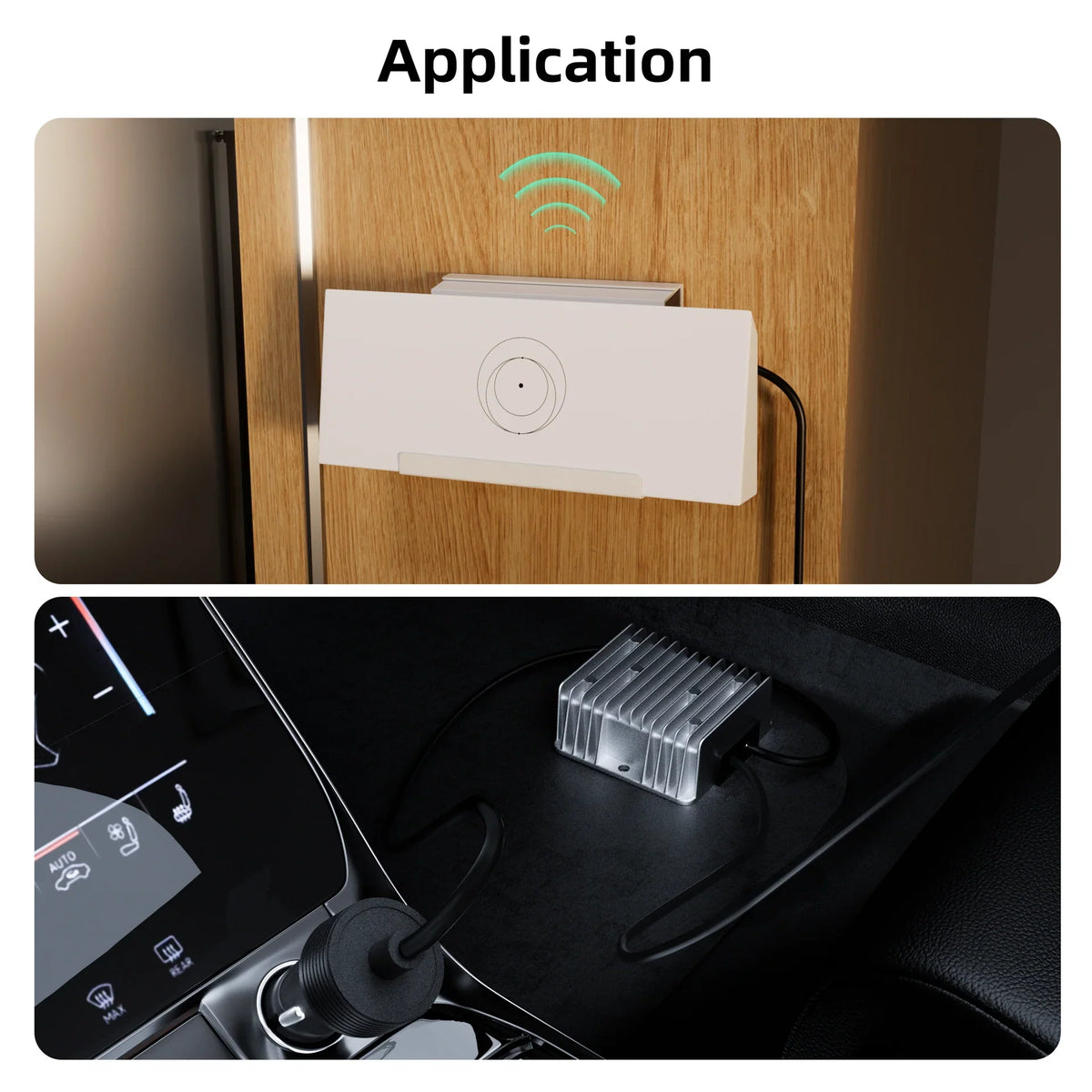

DC Conversion for Starlink Gen 3
For users who want to integrate Gen 3 with an RV or vehicle battery, a DC converter can provide a controlled output.
The basic architecture is:
12V / 24V Battery
↓
Fuse / Protection
↓
DC-DC Converter
↓
Starlink Gen 3
The converter needs to be specifically designed to provide the appropriate voltage and current for the Starlink Gen 3 power system.
A converter is not simply a cable.
It is part of the electrical system and must be selected according to the Starlink hardware's actual requirements.
57V DC Power for Gen 3
For users building a dedicated DC power system, a regulated higher-voltage output can be used when it matches the requirements of the Gen 3 equipment.
A higher-voltage DC system can reduce current for the same power.
The basic relationship is:
Power = Voltage × Current
Therefore:
Current = Power ÷ Voltage
For example, at 100W:
At 12V
100W ÷ 12V ≈ 8.3A
At 24V
100W ÷ 24V ≈ 4.2A
At 48V
100W ÷ 48V ≈ 2.1A
At 57V
100W ÷ 57V ≈ 1.75A
Lower current can reduce resistive losses and voltage drop for a given cable resistance.
This is one reason higher-voltage DC architectures can be attractive for longer cable runs.
However, the output voltage must always match the equipment's specified requirements.
For a dedicated Gen 3 DC solution, EAZUSE offers:
57V DC Adapter for Starlink Gen 3 →
Before connecting any third-party power adapter, confirm the specifications for your exact Gen 3 hardware and the adapter.
Why Cable Length Matters
Voltage drop is one of the most overlooked problems in mobile DC installations.
The longer the cable, the greater the potential resistance.
Higher current also increases resistive losses.
This is especially important with lower-voltage battery systems.
A simplified relationship is:
Voltage Drop = Current × Cable Resistance
Cable resistance depends on:
-
Cable length
-
Conductor material
-
Wire gauge
-
Temperature
-
Connector resistance
This is why a power system can work perfectly with a short test cable but behave differently after installation in a large RV.
Choosing the Right Cable
For a mobile Starlink installation, don't choose a cable based only on connector compatibility.
Check:
1. Current Capacity
The cable must safely handle the expected current.
2. Length
Avoid unnecessarily long cable runs.
3. Wire Gauge
Longer runs generally require appropriate conductor sizing.
4. Connector Quality
Poor connectors can create additional resistance and heat.
5. Environmental Conditions
Outdoor RV installations may expose cables to:
-
Rain
-
UV
-
Dust
-
Temperature changes
-
Mechanical movement
A good DC installation considers all five.
Battery Runtime for Starlink Gen 3
Battery runtime can be estimated using:
Battery Energy ÷ Starlink Power Consumption = Theoretical Runtime
For example, a nominal:
12V 100Ah battery
contains:
12V × 100Ah = 1,200Wh
If your Starlink system averaged 60W:
1,200Wh ÷ 60W = 20 hours
Again, this is theoretical.
Real-world runtime will be affected by:
-
Battery chemistry
-
Depth of discharge
-
Converter efficiency
-
Inverter efficiency
-
Cable losses
-
Temperature
-
Other electrical loads
If the battery is also powering a refrigerator, laptop and lighting, those loads must be included.
Example: A Complete RV Energy Budget
Imagine an RV user operates:
Starlink Gen 3
plus:
-
Laptop
-
LED lighting
-
Refrigerator
-
Phone charging
A simplified daily energy budget might look like:
| Device | Example Daily Consumption |
|---|---|
| Starlink | 720Wh |
| Laptop | 300Wh |
| Lighting | 80Wh |
| Phones | 50Wh |
| Other electronics | 150Wh |
| Total | 1,300Wh/day |
The actual figures will vary significantly.
The important lesson is:
Don't size the battery around Starlink alone.
Your Starlink is part of the entire RV electrical system.
Adding Solar to a Gen 3 Setup
Solar can replenish the battery during daylight hours.
A typical architecture is:
Solar Panels
↓
MPPT Charge Controller
↓
Battery
↓
DC Power Solution
↓
Starlink Gen 3
This allows Starlink to operate as part of the RV's existing off-grid electrical system.
How Much Solar Do You Need?
Start with your daily energy requirement.
Suppose your complete electrical system consumes:
1,300Wh/day
You then need enough solar generation to replace that energy while accounting for:
-
Solar conversion losses
-
Battery charging losses
-
Cable losses
-
Weather
-
Panel orientation
-
Shading
-
Seasonal variation
For example, a nominal 400W solar array receiving four equivalent peak-sun-hours would theoretically generate:
400W × 4h = 1,600Wh
But real-world usable energy will be lower.
This is why solar systems should be designed with reasonable headroom rather than around ideal conditions.
Gen 3 Power Station Setup
Many RV users already have a portable power station.
This can make Gen 3 installation simpler.
The setup could be:
Portable Power Station
↓
AC Output
↓
Starlink Power Supply
↓
Gen 3
The main advantage is convenience.
You don't need to design a separate battery, inverter and charge-controller system.
The power station handles much of the electrical management internally.
The disadvantage is that you are still relying on the power station's AC inverter when the Starlink system ultimately operates through its own power electronics.
For occasional camping, convenience may be more important than optimizing every conversion stage.
For long-term off-grid operation, a dedicated electrical architecture can be worth considering.
AC vs DC for Starlink Gen 3
Here's the practical comparison.
| Feature | AC Setup | DC Setup |
|---|---|---|
| Installation | Simple | More technical |
| Home use | Convenient | Usually unnecessary |
| RV use | Easy | Efficient architecture possible |
| Off-grid | Requires inverter | Can integrate with battery |
| Electrical design | Simple | More involved |
| Troubleshooting | Easier | Requires DC knowledge |
| Cable planning | Less critical | More important |
| Conversion stages | More | Potentially fewer |
For a home office, AC is usually the straightforward choice.
For a dedicated RV or off-grid installation, a properly designed DC solution can be attractive.
When Should You Use the Standard AC Adapter?
The standard AC power system makes sense when:
-
You have grid power
-
You want the simplest setup
-
Starlink is installed permanently
-
You don't need to conserve battery energy
-
You don't want to modify your electrical system
For users who want a replacement or spare power supply, EAZUSE offers:
Starlink Gen 3 195W AC/DC Power Adapter →
A spare adapter can also be useful for travel or as a backup.
When Does a DC Setup Make More Sense?
A dedicated DC system becomes more interesting when:
-
You're using Starlink in an RV
-
You're running from batteries
-
You're operating off-grid
-
You use solar
-
You want to minimize unnecessary power conversion
-
Starlink runs for many hours per day
The key is not that DC is always better.
The key is:
Use the power architecture that matches your environment.
Gen 3 Power and Mounting Should Be Planned Together
Power is only one part of a mobile Starlink installation.
The antenna also needs a suitable mounting location.
For an RV:
Roof
↓
Starlink Gen 3
↓
Power Cable
↓
DC / AC Power System
The mounting location affects cable length.
Cable length affects voltage drop.
The power architecture affects where the converter or power supply should be installed.
Therefore, it's better to design the whole system together rather than choosing each accessory separately.
For example, if Gen 3 is installed on an RV roof, a magnetic mounting solution can provide a removable option for compatible metal surfaces.
EAZUSE offers:
Starlink Gen 3 Magnetic Roof Mount →
Don't Forget Storage
Gen 3 is larger than Mini, which makes storage more important for mobile users.
If you're removing the dish every time you travel, a dedicated protective case can help keep the system organized.
A travel case can protect:
-
Starlink hardware
-
Power supply
-
Cables
-
Mounting accessories
EAZUSE offers:
Starlink Gen 3 Hard Travel Case →
For frequent travelers, keeping the complete Starlink kit together can make setup much faster.
Common Gen 3 Power Mistakes
Mistake 1: Connecting a 12V Battery Directly
Don't assume the battery voltage is compatible with the Starlink hardware.
Use a properly designed converter when necessary.
Mistake 2: Confusing Adapter Rating With Consumption
A power adapter's maximum rating does not mean the Starlink system continuously consumes that amount.
Mistake 3: Ignoring Cable Voltage Drop
Long cable runs can create significant voltage drop, particularly at higher current.
Mistake 4: Forgetting Conversion Losses
Inverter and converter efficiency both affect battery runtime.
Mistake 5: Ignoring Other RV Loads
Starlink is rarely the only device drawing power.
Mistake 6: Using the Wrong Connector or Polarity
Connector appearance alone is not enough.
Always verify electrical compatibility.
A Practical Gen 3 RV Power Architecture
For a user who wants to build a dedicated mobile system, the architecture can look like:
Option A: Simple AC
Battery
↓
Inverter
↓
AC
↓
Starlink Power Supply
↓
Gen 3
This is simple and flexible.
Option B: Dedicated DC
Battery
↓
Fuse
↓
DC-DC Converter
↓
Gen 3
This can reduce unnecessary DC-to-AC-to-DC conversion.
Option C: Solar + Battery + DC
Solar
↓
MPPT Controller
↓
Battery
↓
DC Converter
↓
Gen 3
This is particularly suitable for users who want to operate Starlink for extended periods away from the grid.
FAQ
Can Starlink Gen 3 run from an RV battery?
It can be integrated into an RV battery system, but you should use a properly designed power solution that matches the electrical requirements of the Gen 3 hardware.
Do not connect a battery directly unless the voltage and electrical specifications are explicitly compatible.
Can I run Starlink Gen 3 from 12V?
A 12V battery can be the energy source for a Gen 3 installation, but the Starlink hardware's required voltage and power architecture must be respected. A suitable DC-DC converter may be required.
Is DC power more efficient than AC?
It can reduce conversion stages in a DC battery system, but actual efficiency depends on the inverter, converter, cables and power supplies used.
How much battery capacity do I need?
It depends on:
-
Gen 3 consumption
-
Hours of operation
-
Other RV loads
-
Battery chemistry
-
Desired reserve
-
Converter/inverter efficiency
Start by calculating your total daily watt-hours.
Can solar power Starlink Gen 3?
Yes, indirectly through a properly designed solar + battery + power conversion system.
A typical architecture is:
Solar → Charge Controller → Battery → Power Solution → Starlink
Should I use a portable power station?
For occasional camping, a portable power station can be a convenient option.
For long-term off-grid use, a dedicated RV battery and solar architecture may provide more flexibility.
Do I need an inverter?
Not necessarily.
If your system uses a suitable DC solution designed for the Gen 3 requirements, an inverter may not be necessary.
Is a 57V DC adapter suitable for Gen 3?
A 57V DC solution should only be used when it is specifically designed and rated for the Gen 3 equipment and the exact electrical requirements are verified.
EAZUSE provides a dedicated 57V DC Adapter for Starlink Gen 3 for this type of application.
Final Takeaway
The right Starlink Gen 3 power setup depends heavily on where you use it.
For a home or office:
AC Power → Starlink Power Supply → Gen 3
is usually the simplest architecture.
For an RV:
Battery → Power Solution → Gen 3
can integrate Starlink into the vehicle's existing electrical system.
For extended off-grid use:
Solar → Charge Controller → Battery → DC Power → Gen 3
can provide a more complete energy system.
The most important point is to avoid treating the Starlink power adapter, battery, converter and cable as separate components.
They are one electrical system.
Before building a third-party DC setup, always verify the required voltage, current, connector, polarity, cable capacity and protection requirements for your exact Gen 3 hardware.
For Gen 3 users, EAZUSE offers several accessories for building and transporting a complete setup:
57V DC Adapter for Starlink Gen 3 →
195W AC/DC Power Adapter for Starlink Gen 3 →
A well-designed Gen 3 system should give you three things:
Reliable power.
A clear view of the sky.
A setup that fits the way you actually travel and work.
