Starlink Gen 3 Mounting Guide: Roof Mount, Magnetic Mount & Portable Setup
A reliable Starlink Gen 3 installation starts with one simple question:
Where should you put the dish?
For a permanent home installation, the answer may be a roof, wall, pole, or other fixed structure.
For an RV, van, truck, or camping setup, the decision is more complicated.
You may want to:
-
Install Gen 3 permanently on an RV
-
Mount it temporarily on a vehicle
-
Use a magnetic roof mount
-
Move it between locations
-
Store it while traveling
-
Set it up only when you arrive at camp
The right Starlink Gen 3 mount therefore depends less on the hardware itself and more on how you use Starlink.
In this guide, we'll compare the most practical Gen 3 mounting options, explain how to choose a mounting location, discuss permanent versus removable installations, and cover the most important considerations for RV and mobile users.
Why Mounting Location Matters for Starlink Gen 3
The purpose of a Starlink mount isn't simply to hold the dish.
The mount needs to help place the antenna in a location with a sufficiently clear view of the sky.
Starlink uses an obstruction-checking feature in its app to help users identify objects that may interfere with the satellite connection.
Common obstructions include:
-
Trees
-
Buildings
-
Utility poles
-
Mountains
-
Tall vehicles
-
Roof structures
-
Other nearby objects
A mounting location that looks convenient may not necessarily be the best location for connectivity.
That's why the first step should always be:
Check the sky before choosing the mount.
Starlink Gen 3 Mounting Options at a Glance
There are several ways to install Gen 3 depending on your application.
| Mounting Method | Best For | Installation | Removal | Typical Use |
|---|---|---|---|---|
| Ground / Portable | Camping | Very easy | Very easy | Temporary |
| Roof Mount | Homes, RVs | Moderate | Difficult | Permanent |
| Magnetic Mount | Vehicles | Easy | Easy | Temporary / Mobile |
| Roof Rack Mount | Vans, SUVs, RVs | Moderate | Moderate | Mobile |
| Pole Mount | Property | Moderate | Difficult | Fixed |
| Wall Mount | Buildings | Moderate | Difficult | Fixed |
There is no universal mounting solution.
Instead, think about three questions:
Where will Starlink be used?
How often will you move it?
Do you want a permanent installation?
Portable Gen 3 Setup
The simplest approach is to use Gen 3 without a permanent mounting system.
You place the dish on a stable surface with a clear view of the sky.
This can work well for:
-
Camping
-
Temporary work sites
-
RV stops
-
Outdoor events
-
Emergency connectivity
-
Short-term installations
Advantages
A portable setup requires almost no modification.
You can:
-
Arrive at the location
-
Check the sky
-
Position the dish
-
Connect the system
-
Start using Starlink
When you leave:
Disconnect → Pack → Travel
Limitations
The main disadvantage is stability.
A dish sitting on a temporary surface may be more vulnerable to:
-
Wind
-
Accidental movement
-
Uneven surfaces
-
People or equipment hitting the hardware
For occasional use, this may not be a problem.
For frequent use, a dedicated mount can make the setup much more consistent.
Starlink Gen 3 Roof Mount
A roof mount is a logical choice when Gen 3 is part of a permanent installation.
The basic configuration is:
Roof
↓
Mount
↓
Starlink Gen 3
The main benefit is elevation.
An elevated installation can reduce local obstructions and provide a more consistent position.
Roof mounting is commonly considered for:
-
Houses
-
Workshops
-
Cabins
-
RVs
-
Vans
-
Remote offices
However, permanent installation requires more planning.
What to Consider Before Installing on a Roof
Before drilling into a roof, consider:
Roof Construction
Different roofs use different materials and structures.
Make sure the mounting hardware is compatible with the installation surface.
Waterproofing
Any penetration through a roof needs appropriate sealing.
A poor installation can create water-intrusion problems.
Cable Entry
Think about where the Starlink cable will enter the building or vehicle.
Maintenance
Ask yourself:
Can I still access the dish and cable if something needs to be replaced?
Obstructions
The highest point on the roof isn't automatically the best location.
A nearby tree can still block the satellite view.

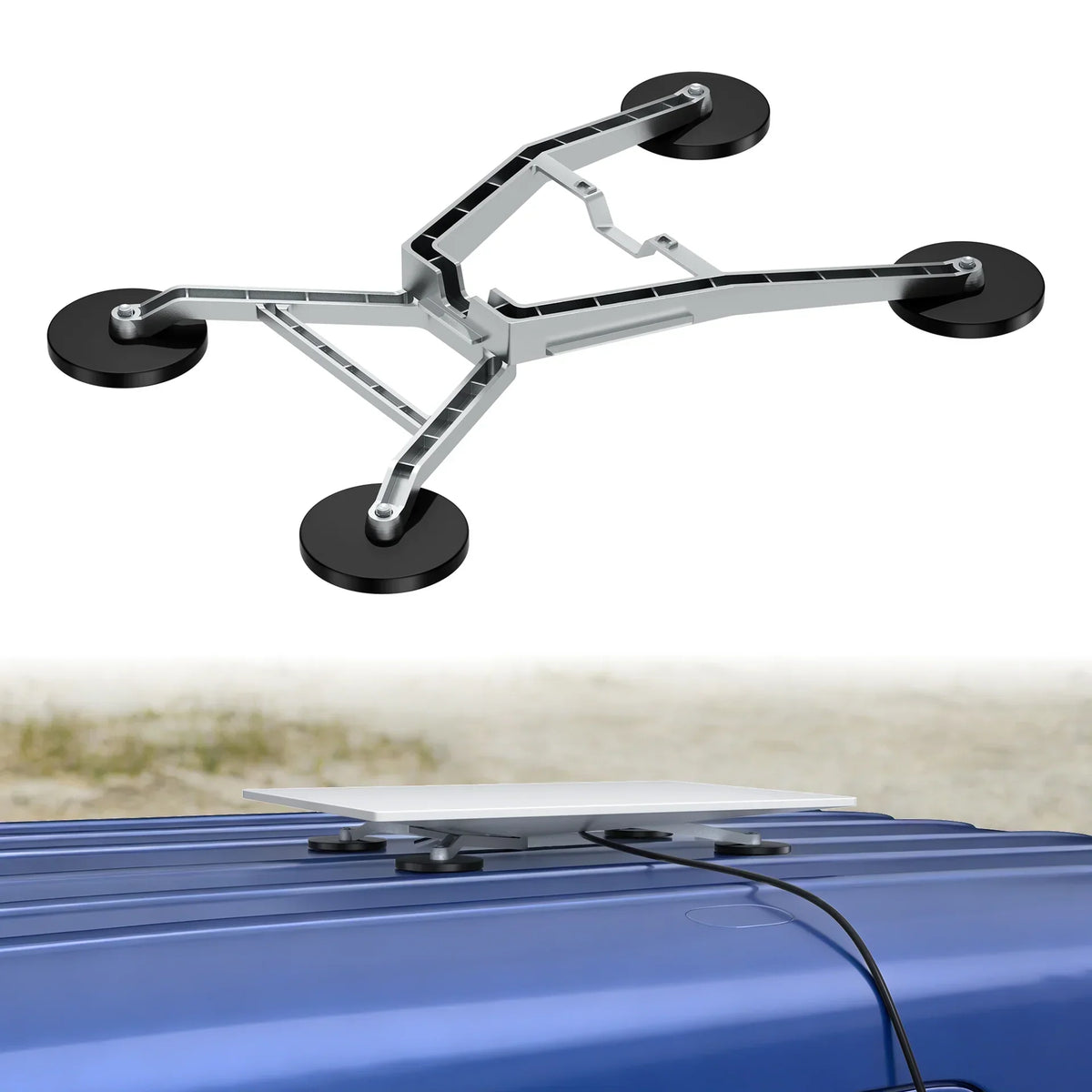

Magnetic Roof Mount for Gen 3
For vehicle users who don't want to drill into the roof, a magnetic mounting solution can be a useful alternative when the mounting surface is compatible.
The basic configuration is:
Vehicle Roof
↓
Magnetic Base
↓
Starlink Gen 3
This allows you to install and remove the Starlink without permanent vehicle modification.
Why Choose a Magnetic Mount?
The biggest advantage is flexibility.
A typical workflow is:
Park → Attach → Connect → Use → Remove → Store
This can be particularly useful for:
-
RV owners
-
Vanlife users
-
Work trucks
-
Field technicians
-
Campers
-
Mobile offices
You can keep the Starlink hardware stored inside the vehicle while traveling and deploy it when you arrive.
EAZUSE offers a:
Starlink Gen 3 Magnetic Roof Mount →
Is a Magnetic Mount Suitable for Every Vehicle?
No.
Magnetic mounting requires a compatible surface.
Before purchasing a magnetic mount, check:
-
Roof material
-
Mounting area
-
Surface condition
-
Magnet compatibility
-
Mount dimensions
-
Environmental conditions
Some RVs and vans use materials that are not suitable for magnetic mounting.
In those cases, a roof-rack or another mounting method may be more appropriate.
Magnetic Mount vs Permanent Roof Mount
These two approaches solve different problems.
| Feature | Magnetic Mount | Permanent Roof Mount |
|---|---|---|
| Drilling | No | May be required |
| Installation speed | Fast | Slower |
| Removal | Easy | Difficult |
| Vehicle modification | Minimal | Possible |
| Flexibility | High | Lower |
| Best for | Mobile users | Long-term installation |
| Storage | Easy | Not usually required |
If you move frequently, flexibility may be more important.
If Starlink is effectively part of the building or vehicle, a permanent mount may make more sense.
Starlink Gen 3 for RVs
RVs are one of the most interesting use cases for Gen 3 because they combine:
Mobility + Battery Power + Changing Environments
The mounting strategy therefore needs to work with the entire RV system.
A typical configuration could be:
Starlink Gen 3
↓
Roof / Magnetic Mount
↓
Cable
↓
RV Power System
↓
Battery / AC Power
The mounting location determines cable length.
Cable length can affect voltage drop when using certain DC power architectures.
And the power system determines where your equipment can realistically be installed.
This is why mounting and power should be planned together.
Gen 3 Roof Rack Mounting
A roof rack provides another option for mobile installations.
Instead of attaching directly to the vehicle roof:
Roof Rack
↓
Mount
↓
Starlink Gen 3
This can be useful for vehicles that already have:
-
Roof rails
-
Crossbars
-
Cargo racks
-
Adventure racks
The main advantage is that you can create a dedicated mounting point without necessarily drilling through the vehicle roof.
However, you still need to consider:
-
Rack compatibility
-
Load capacity
-
Cable routing
-
Wind exposure
-
Mounting security
-
Vehicle clearance
Can You Leave Starlink Gen 3 Mounted While Driving?
This depends entirely on the mounting system.
A mount designed for stationary use should not automatically be considered suitable for highway driving.
High-speed travel introduces additional forces from:
-
Wind
-
Vibration
-
Acceleration
-
Braking
-
Road impacts
Before driving with Gen 3 mounted, verify the manufacturer's intended use and installation instructions for the specific mount.
For removable systems, a simple workflow is often:
Drive → Park → Install → Use → Remove → Store
This avoids assuming that a stationary mounting solution is suitable for high-speed travel.
Cable Management for Roof-Mounted Gen 3
A good mount is only part of the installation.
The cable also needs to be managed correctly.
Avoid:
-
Sharp bends
-
Pinched cables
-
Loose cable loops
-
Unprotected roof edges
-
Excessive cable length
-
Poorly protected entry points
For permanent installations, consider the complete route:
Dish
↓
Roof
↓
Cable Entry
↓
Power Supply
↓
Router / Network
The cleaner this route is, the easier future maintenance becomes.
Keep the Cable Away From Moving Parts
This is particularly important on vehicles.
If the cable passes near:
-
Doors
-
Windows
-
Hinges
-
Roof mechanisms
-
Sliding panels
make sure it cannot become pinched or damaged.
A cable that works perfectly on day one can eventually fail if it is repeatedly compressed or bent.
Mounting Height vs Obstructions
Many users assume:
Higher = Better
But that's not always true.
The goal is not simply to put Gen 3 as high as possible.
The goal is:
A clear practical view of the sky.
For example, raising the antenna one meter may not solve an obstruction caused by a nearby tree.
On the other hand, moving the dish several meters away from the tree may make a much bigger difference.
So before modifying the installation:
Check the obstruction environment first.
Trees Are a Common Problem
Trees are especially important because they can create persistent obstructions.
A campsite may look open at ground level while the upper part of the sky is heavily blocked by branches.
If you are using Gen 3 for:
-
Video calls
-
Remote work
-
Streaming
-
Cloud applications
-
Business communications
a poor obstruction environment can be much more noticeable than during occasional web browsing.
Buildings Can Also Create Obstructions
Urban and suburban users should also consider nearby structures.
Potential problems include:
-
Neighboring buildings
-
Apartment blocks
-
Chimneys
-
Roof structures
-
Water tanks
-
Large signs
A roof installation should therefore be evaluated based on the surrounding environment rather than the roof alone.
Portable vs Permanent Gen 3 Installation
Here's the simplest way to think about the two.
Portable
Best when:
-
You move often
-
You camp occasionally
-
You don't want permanent modification
-
You need maximum flexibility
Typical equipment:
Gen 3 + Portable Setup + Travel Case
Permanent
Best when:
-
Starlink stays at one location
-
You want quick deployment
-
You want consistent positioning
-
You are comfortable with permanent installation
Typical equipment:
Gen 3 + Roof Mount + Permanent Cable Routing
A Travel Case Complements a Removable Mount
If you're using a magnetic or portable installation, storage becomes important.
When you remove Gen 3 from the vehicle, you need somewhere to store:
-
Starlink hardware
-
Power supply
-
Cables
-
Mounting accessories
A dedicated hard case can keep everything together.
EAZUSE offers a:
Starlink Gen 3 Hard Travel Case →
This is particularly useful for users who repeatedly switch between:
Travel Mode
and
Connected Mode
Gen 3 Mounting and Power: Build the System Together
A common mistake is choosing the mounting location first and thinking about power later.
Instead, consider the complete system.
Example RV Setup
Starlink Gen 3
↓
Magnetic Roof Mount
↓
Cable
↓
57V DC Power Solution
↓
RV Battery
This creates a complete mobile system.
For users building a dedicated DC setup, EAZUSE offers a:
57V DC Adapter for Starlink Gen 3 →
For conventional AC operation, a suitable AC/DC power adapter can be used:
195W AC/DC Power Adapter for Starlink Gen 3 →
The important point is to verify that the selected power equipment matches the exact Gen 3 hardware and electrical requirements.
Three Practical Gen 3 Mounting Scenarios
Scenario 1: Weekend Camping
You drive to a campsite for two nights.
You don't want to permanently modify the vehicle.
A practical setup might be:
Gen 3
Portable or Magnetic Mount
Portable Power Station
Travel Case
The priority is:
Fast setup + easy removal
Scenario 2: Full-Time RV Travel
You use Starlink almost every day.
A more integrated setup might be:
Gen 3
Roof / Roof-Rack Mount
Dedicated Cable Routing
RV Battery / Power System
The priority is:
Reliability + convenience
Scenario 3: Permanent Remote Property
Starlink stays at one location.
A fixed installation becomes more practical:
Gen 3
Permanent Mount
Protected Cable Route
AC Power
The priority is:
Long-term stability + clean installation
How to Choose the Right Gen 3 Mount
Ask these five questions.
1. Where Will I Use Starlink?
Home, RV, van, truck, campsite, cabin?
2. How Often Will I Move It?
Daily, weekly, monthly, or never?
3. Can I Modify the Mounting Surface?
If not, prioritize removable mounting.
4. What Is Blocking the Sky?
Use the Starlink App before installation.
5. How Will I Power It?
AC, portable power station, RV battery, or dedicated DC system?
Once you answer these five questions, the appropriate mounting category becomes much easier to identify.
Common Gen 3 Mounting Mistakes
Mistake 1: Choosing a Mount Before Checking Obstructions
The mount cannot fix a bad location.
Mistake 2: Assuming Any Roof Is Suitable
Roof material and structure matter.
Mistake 3: Ignoring Cable Routing
A good mounting location can become a bad installation if the cable is too long or exposed.
Mistake 4: Treating Temporary Mounts as Permanent
Magnetic and suction mounting systems should be used according to their intended application.
Mistake 5: Assuming Mounted Means Driving-Safe
Stationary mounting and highway mounting are different requirements.
Mistake 6: Forgetting Storage
If you use a removable setup, you need a safe place for the hardware when traveling.
FAQ
What is the best Starlink Gen 3 mount?
There is no single mount that is best for every situation.
The right choice depends on whether Gen 3 is being used permanently, in an RV, on a vehicle, or as a portable system.
Can Starlink Gen 3 be mounted on an RV roof?
Yes, a roof-mounted installation can be used when the roof structure and mounting system are compatible.
Consider cable routing, waterproofing, maintenance access, and sky visibility before installation.
Can I use a magnetic mount for Starlink Gen 3?
Yes, when the vehicle surface and magnetic mount are compatible.
Magnetic mounting is particularly useful for removable vehicle-based setups.
Can I remove the Gen 3 mount when traveling?
Some mounting systems are designed for easy removal.
Portable and magnetic setups are generally easier to remove than permanent roof installations.
Can I drive with Starlink Gen 3 on the roof?
Only if the specific mounting system is designed and approved for that type of use.
Do not assume that a stationary mount is suitable for highway driving.
Does a higher Starlink mount improve performance?
Not necessarily.
The primary objective is to obtain a sufficiently clear view of the sky.
Should I mount Starlink Gen 3 on the roof or roof rack?
Either can work depending on your vehicle.
A roof rack can be useful when you want to avoid drilling into the roof, while a dedicated roof installation may be more appropriate for a permanent setup.
Do I need a travel case for Gen 3?
Not necessarily, but a hard case can be useful if you regularly remove and transport the hardware.
It can keep the dish, cables, power equipment and mounting accessories together.
How should I route the Gen 3 cable?
Keep the cable protected from sharp edges, excessive bending, pinching and unnecessary exposure. For permanent installations, plan the cable route before mounting the dish.
Final Takeaway
The best Starlink Gen 3 mounting solution isn't necessarily the most permanent one.
It's the one that fits the way you actually use Starlink.
For occasional camping:
Portable Setup
For frequent vehicle travel:
Magnetic or Roof-Rack Mount
For a long-term RV installation:
Dedicated Roof Mount
For a permanent property installation:
Fixed Roof / Wall / Pole Mount
Whatever mounting method you choose, start with the same three priorities:
Clear Sky → Stable Mount → Protected Cable
Then build the power system around the installation.
For mobile Gen 3 users, EAZUSE provides accessories covering mounting, power and storage:
A well-designed Gen 3 installation should not only keep the dish in place. It should make the entire Starlink system easy to deploy, easy to power, easy to store, and reliable in the environment where you actually use it.
